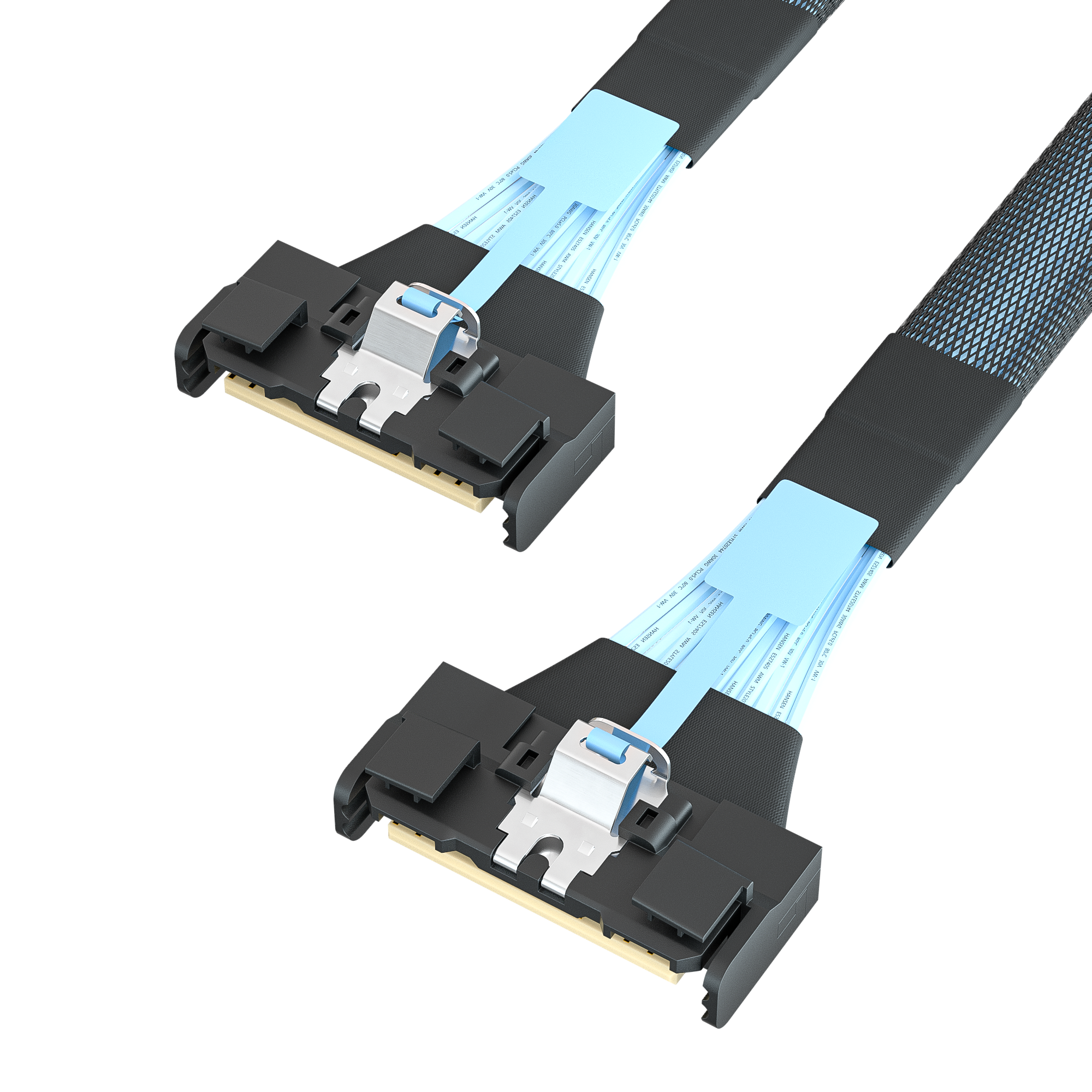

Unleash the Full Potential of Your Storage Architecture: The Next-Gen MCIO 8X to MCIO 8X SAS Cable

In the rapidly evolving landscape of enterprise data centers and high-performance computing, the demands on internal infrastructure have never been greater. As we push the boundaries of data transfer speeds with PCIe Gen5 and beyond, the need for reliable, high-density, and future-proof interconnect solutions is paramount. Our MCIO 8X to MCIO 8X SAS Cable is engineered to meet these exacting standards, providing a seamless bridge for critical storage and networking applications.

The New Standard in High-Density Connectivity

Designed in compliance with the SFF-TA-1016 standard, the MCIO (Mini Cool Edge I/O) connector represents a leap forward in internal cabling technology . Our direct MCIO 8X to 8X cable assembly is the perfect solution for direct board-to-board, backplane, or storage controller connections where signal integrity and space optimization are non-negotiable.

Key Features & Technical Highlights

1.Blazing-Fast Data Rates

Move beyond bottlenecks. This cable is rigorously tested to support 32GT/s PCIe Gen5 data rates, ensuring full compatibility with the latest NVMe and SAS storage devices It is also backward compatible with PCIe Gen4 and Gen3, making it a versatile choice for mixed-generation environments. Furthermore, its signal integrity performance meets the stringent requirements for 56G PAM4, preparing your infrastructure for the next wave of high-speed protocols.

2. Superior Signal Integrity

Engineered with a controlled 85-ohm impedance and constructed using high-quality, shielded twinax cable, this assembly guarantees loss-less transmission and minimal electromagnetic interference (EMI) Whether you are running 24Gbps SAS 4.0 or PCIe 5.0, you can rely on a stable, error-free connection even under heavy system loads.

3. Space-Saving Design

Featuring a compact 0.6mm pitch connector design, the MCIO form factor is optimized for high-density server chassis and compact enclosures . It provides a flexible alternative to rigid PCB routing, simplifying system airflow and cable management.

4. Robust Mechanical Performance

Built for the rigors of the data center, these cables feature a durable latching mechanism ensuring a secure fit. With a durability rating of 200-250 mating cycles and support for 30AWG to 34AWG wire sizes, they are designed for long-term reliability.

5. Versatile Application Range

While optimized for SAS and PCIe protocols, this cable is protocol-agnostic, supporting:

SAS 3.0 / 4.0 (24 Gbps)

PCIe Gen 3.0, 4.0, and 5.0

Ethernet applications up to 25G and 56G PAM4

Ideal Applications

Enterprise Servers & Storage: Direct attach between motherboards, backplanes, and RAID/HBA controllers .

Data Centers: Optimize rack density and improve airflow in Top-of-Rack switch connections and server internals.

High-Performance Computing (HPC): Ensure the low latency required for clustered computing environments.

OEM & Industrial Systems: A reliable solution for custom embedded applications requiring high throughput.

Future-Proof Your Infrastructure

As the industry transitions to PCIe Gen6, the infrastructure you build today must be ready for tomorrow. Our MCIO 8X to 8X cable assemblies are designed with headroom to support next-generation requirements, making them a smart investment for any forward-thinking IT strategy.

Connect with Confidence.

Don't let your cabling be the weakest link in your data chain. Upgrade to the performance, density, and reliability of our MCIO 8X to MCIO 8X SAS cables.

Contact us today to discuss your specific length requirements and to place your bulk order.
